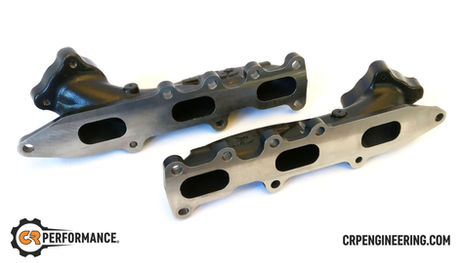

Full Bore Performance Manifolds for the Ford F-150 EcoBoost 3.5L
Unleash your F-150s Full Potential with our Full Bore 3.5L V6 EcoBoost Performance Manifolds
More Photos Can Be Seen Here
– High performance larger runners provide 45% more flow over stock with no restriction throughout the RPM range
– Ready to support over 650 HP of flow
– Dyno proven quicker spool times
– Removes restriction of front cylinders as seen on stock manifolds, equalizing cylinder pressures
– Port matched to turbocharger turbine housing (Unlike OEM Manifolds)
– Thick wall durable High Sil Steel resists warping without cracking
– Dyno proven gains on completely stock truck of 12 RWHP 18 RW ft-lbs with massive area under the curve
( 340 RWHP & 387 ft-lbs with Box SCT Tuner )
(DYNO-mite Eddy Current Dyno, Stock 2014 F-150 with SCT Tuner)
– Users can expect exponential further gains when matched with other performance products pushing flow past the stock manifold abilities or in combination with Custom Tuning
– Users can expect 1-2 MPG fuel savings with improved manifold port geometry
Applications:
2011-2012 F-150 EcoBoost 3.5L
2013-2016 F-150 EcoBoost 3.5L
2016-2017 Ford Expedition
2015-2017 Lincoln Navigator
2015-2019 FORD Transit
Included In The Kit:
– 1 x Performance Drivers Side Manifold
– 1 x Performance Passenger Side Manifold
– 16 x W712244-S300 – Manifold Stud F150 3.5L
– 16 x W701706-S440 – Grade 10 Locking Manifold Nut
– 1 x Install Manual
OEM Gaskets & Hardware Required:
1x BL3Z-9448-C 2011+ DS F150 3.5L Manifold Gasket (L / DS)
1x DK4Z-9448-A 2011+ PS F150 3.5L Manifold Gasket (R / PS)
2x BL3Z-6N652-B 2011+ F150 3.5L Turbo Oil Drain Gasket
2x BL3Z-9450-A 2011+ F150 3.5L DownPipe Gasket (Not required unless separated)
6x W715673-S900 2011+ Turbo Mounting Bolt F150 3.5L
4x W716667-S900 2011+ Downpipe Stud F150 3.5L (Recommended)
4x W520514-S440 2011+ Downpipe Nut F150 3.5L
4x BC3Z-6A968-C 2011+ Ford Jiffy-Tite Coolant Fitting (Highly Recommended)
1x CL3Z-9450-B 2013-16 F150 3.5L Turbine Housing Inlet Gasket (L / DS)
1x CL3Z-9450-A 2013-16 F150 3.5L Turbine Housing Inlet Gasket (R / PS)
