NGK 95605 LTR7BHX Ruthenium HX Spark Plugs
Available in Sets of 4 or 6
The NGK 95605 LTR7BHX spark plug features NGK’s Ruthenium HX technology, engineered for modern high‑output engines that demand strong ignitability, consistent combustion, and long service life. These plugs are a proven choice for Ford and Lincoln EcoBoost platforms, particularly in tuned and higher‑boost applications.
✅ Check out our Spark Plug Package with Gap Tool and Feeler Gauges
✅ We strongly recommend confirming your plug gap with a feeler gauge before installation
✅ Pre‑gapped options are available at checkout under “Tuner Recommended Gap” or any of the specified gaps.
🎥 How to Gap Spark Plugs:
See our step‑by‑step video on YouTube
📦 Shipping & Lead Time
- Spark plugs ship directly from ZFG Racing
- Lead times vary based on demand and gapping selection
- Pre‑gapped plugs typically ship within ~10 business days once in stock
Key Features & Benefits

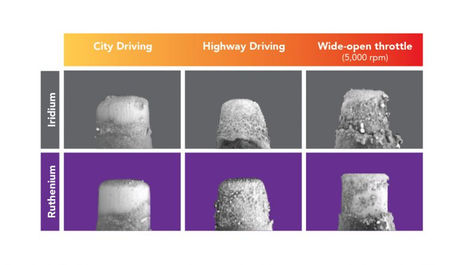

- Ruthenium HX Fine‑Wire Center Electrode (0.6mm):
Enhances ignitability and combustion stability across a wide range of air‑fuel ratios - Projected Square Platinum Ground Electrode:
Concentrates spark energy for improved performance in both rich and lean conditions - Platinum‑Enhanced Trivalent Metal Coating:
Superior corrosion resistance and anti‑seize properties - Copper Core Construction:
Efficient heat dissipation for consistent performance under load - Corrugated Ceramic Ribs & Pure Alumina Insulator:
Prevent flashover while providing excellent strength and heat transfer
Plug Gapping & Fitment Notes
- Standard Gap: 0.031" (0.8mm)
- Typical ZFG‑Recommended Gap for EcoBoost Applications: 0.028"
- Final gap recommendation varies by vehicle, boost, fuel type, and tuning strategy
📩 To confirm the exact recommended gap for your setup, please email us your build details and any previous ZFG order number(s): Sales@tunedbyzfgracing.com
Technical Specifications
Shell
- Thread Diameter: 14mm
- Thread Pitch: 1.25mm
- Seat Type: Tapered
- Reach: 25mm (1")
- Hex Size: 5/8" (16mm)
- Terminal Type: Solid
Electrodes
- Center Electrode Material: Ruthenium
- Center Electrode Type: Fine Wire (0.6mm)
- Ground Electrode Material: Platinum
- Ground Electrode Type: Projected Square
Electrical & Heat
- Resistor: Yes
- Resistor Value: 5k Ohm
- Heat Range: 7
Torque Specifications
- Cast Iron Heads: 10.8–18 lb‑ft
- Aluminum Heads: 7.2–14.5 lb‑ft
Additional Information
- Brand: NGK / NTK
- Warranty: 1 Year
- Expected Service Life: ~60,000–120,000 miles (application‑dependent)
Optional Add‑On: ZFG Spark Plug Gapping Package
The ZFG Spark Plug Package includes the specialized tools needed to:
- Measure plug gap
- Correct gap safely
- Verify consistency before installation
This package may be purchased with or without spark plugs and is ideal for DIY installers or shops wanting repeatable results.
